That got quite a bit more than I expected. So now it’s basically an evolving programmatic image generator. 😄
The params are:
populationSizeis how many images to generateinitialGeneLengthis how long genes are when randomly generatedscaleis how much to downsample (if you set this to 1 it gets slow, you can usere-renderto fix that)mutationRateis how many genes are randomly tweakedmodecan be a completelyrandomimage, my self portrait, or a randomimagefrom online (which you can also upload to)
Genes are defined as a list of floats in the range 0..1. The range will be evenly divided between all of the operations in ops in the source code, a bunch of things like constants, math operations, random numbers etc and run a relatively simple stack based language. 😄!
Once you have a set of generated images, you can single click an image to select it or double click to zoom in on a single image.
You also have some new buttons available:
randomizewill regenerate all genomesselect allwill select all/none of the genomesmutatewill apply mutation to all images (50% tweak values, 25% each insertion and deletion)advancewill take any selected images, and randomly breed them together to fill any non-selected spaces; this can shorten/lengthen genomes and can include the same genome being both parentsdebugwill print some debug information to the consolere-render(in single image mode) will render a full resolution version of the currently double clicked image
Then finally, there’s the ’load your own’ dialog, which will replace the image used for image mode with whatever you upload. It works best with square images and will squash anything else to a square aspect ratio.

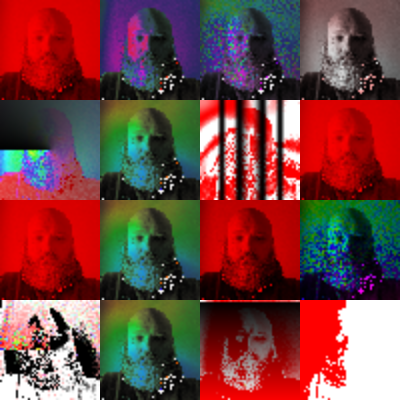

The main ’evolution’ would be repeatedly selecting the images you like the best and advancing.
Have fun!
let gui;
let params = {
populationSize: 16, populationSizeMin: 1, populationSizeMax: 64,
initialGeneLength: 100, initialGeneLengthMin: 10, initialGeneLengthMax: 500,
scale: 8, scaleMin: 1, scaleMax: 16,
mutationRate: 0.1, mutationRateMin: 0, mutationRateMax: 1, mutationRateStep: 0.01,
mode: ['random', 'self-portrait', 'image'],
};
let portraitImage;
let randomImage;
let currentImage;
let displayOne;
let population;
let selected;
let message;
let previousScale = params.scale;
let previousMode = 'random';
function sampleCurrentImage(x, y) {
if (!currentImage) return [0, 0, 0];
let sx = floor(x * currentImage.width);
let sy = floor(y * currentImage.height);
let r = currentImage.pixels[(sy * currentImage.width + sx) * 4 + 0];
let g = currentImage.pixels[(sy * currentImage.width + sx) * 4 + 1];
let b = currentImage.pixels[(sy * currentImage.width + sx) * 4 + 2];
return [r / 255, g / 255, b / 255];
}
ops = {
const_z: ({stack}) => stack.push(0),
const_one: ({stack}) => stack.push(1),
const_half: ({stack}) => stack.push(0.5),
const_pi: ({stack}) => stack.push(PI / TWO_PI),
const_x: ({stack, x}) => stack.push(x),
const_y: ({stack, y}) => stack.push(y),
const_r: ({stack, r}) => stack.push(r),
const_g: ({stack, g}) => stack.push(g),
const_b: ({stack, b}) => stack.push(b),
const_theta: ({stack, theta}) => stack.push(theta),
const_radius: ({stack, radius}) => stack.push(radius),
add: ({stack}) => {
const b = stack.pop() || 0;
const a = stack.pop() || 0;
stack.push(a + b);
},
sub: ({stack}) => {
const b = stack.pop() || 0;
const a = stack.pop() || 0;
stack.push(a - b);
},
mul: ({stack}) => {
const b = stack.pop() || 0;
const a = stack.pop() || 0;
stack.push(a * b);
},
div: ({stack}) => {
const b = stack.pop() || 0;
const a = stack.pop() || 1;
stack.push(a / b);
},
sin: ({stack}) => {
const a = stack.pop() || 0;
stack.push(sin(a * TWO_PI));
},
cos: ({stack}) => {
const a = stack.pop() || 0;
stack.push(cos(a * TWO_PI));
},
mod: ({stack}) => {
const b = stack.pop() || 1;
const a = stack.pop() || 0;
const r = a / b;
stack.push((r - floor(r)) * b);
},
inverse: ({stack}) => {
const a = stack.pop() || 1;
stack.push(1 - a);
},
if_gt: ({stack}) => {
const f = stack.pop() || 0;
const t = stack.pop() || 0;
const a = stack.pop() || 0;
const b = stack.pop() || 0;
stack.push(a > b ? t : f);
},
if_eq: ({stack}) => {
const f = stack.pop() || 0;
const t = stack.pop() || 0;
const a = stack.pop() || 0;
const b = stack.pop() || 0;
stack.push(a === b ? t : f);
},
abs: ({stack}) => {
const a = stack.pop() || 0;
stack.push(abs(a));
},
sqrt: ({stack}) => {
const a = stack.pop() || 0;
stack.push(sqrt(a));
},
log: ({stack}) => {
const a = stack.pop() || 1;
stack.push(log(a));
},
exp: ({stack}) => {
const a = stack.pop() || 0;
stack.push(exp(a));
},
drop: ({stack}) => {
stack.pop();
},
dup: ({stack}) => {
const a = stack.pop() || 0;
stack.push(a);
stack.push(a);
},
swap: ({stack}) => {
const b = stack.pop() || 0;
const a = stack.pop() || 0;
stack.push(b);
stack.push(a);
},
noise: ({stack, x, y}) => {
const scale = stack.pop() || 1;
stack.push(noise(x * scale, y * scale));
},
random: ({stack}) => {
stack.push(random());
},
average3: ({stack}) => {
const c = stack.pop() || 0;
const b = stack.pop() || 0;
const a = stack.pop() || 0;
stack.push((a + b + c) / 3);
},
sample: ({stack, x, y}) => {
let [r, g, b] = sampleCurrentImage(x, y);
stack.push(b);
stack.push(g);
stack.push(r);
},
sampleR: ({stack, x, y}) => { stack.push(sampleCurrentImage(x, y)[0]); },
sampleG: ({stack, x, y}) => { stack.push(sampleCurrentImage(x, y)[1]); },
sampleB: ({stack, x, y}) => { stack.push(sampleCurrentImage(x, y)[2]); },
};
class Gene {
constructor () {
this.gene = [];
this.selected = false;
this.width = width / params.scale;
this.height = height / params.scale;
this.buffer = createGraphics(this.width, this.height);
for (let i = 0; i < params.initialGeneLength; i++) {
this.gene.push(random());
}
}
mutate() {
for (let i = 0; i < this.gene.length; i++) {
if (random() < params.mutationRate) {
let mutationMode = random();
if (mutationMode < 0.5) {
this.gene[i] += (random() - random()) / 10;
while (this.gene[i] < 0) this.gene[i] += 1;
while (this.gene[i] > 1) this.gene[i] -= 1;
} else if (mutationMode < 0.75) {
this.gene.splice(i, 1);
i--;
} else {
this.gene.splice(i, 0, random());
i++;
}
}
}
}
crossover(other) {
let child = new Gene();
let i = floor(random(this.gene.length));
let j = floor(random(other.gene.length));
child.gene = [
...this.gene.slice(0, i),
...other.gene.slice(j)
];
return child;
}
evaluate() {
if (currentImage) currentImage.loadPixels();
this.buffer.background(0);
this.buffer.loadPixels();
let opKeys = Object.keys(ops);
for (let y = 0; y < this.height; y++) {
for (let x = 0; x < this.width; x++) {
let stack = [];
let scaledX = x / this.width;
let scaledY = y / this.height;
let theta = atan2(y - this.height / 2, x - this.width / 2);
let radius = dist(x, y, this.width / 2, this.height / 2) / (this.width / 2);
let r = 0;
let g = 128;
let b = 255;
if (currentImage) {
let [r, g, b] = sampleCurrentImage(scaledX, scaledY);
}
for (let i = 0; i < this.gene.length; i++) {
const opIndex = floor(this.gene[i] * opKeys.length);
const opKey = opKeys[opIndex];
ops[opKey]({
stack,
r: r / 255,
g: g / 255,
b: b / 255,
theta: (theta + PI) / TWO_PI,
radius: radius / dist(0, 0, this.width / 2, this.height / 2),
x: scaledX,
y: scaledY,
});
}
const hue = map(stack.pop() || 0, 0, 1, 0, 360);
const sat = map(stack.pop() || 1, 0, 1, 0, 100);
const bri = map(stack.pop() || 1, 0, 1, 0, 100);
let output_c = color(hue, sat, bri);
this.buffer.pixels[(y * this.width + x) * 4 + 0] = red(output_c);
this.buffer.pixels[(y * this.width + x) * 4 + 1] = green(output_c);
this.buffer.pixels[(y * this.width + x) * 4 + 2] = blue(output_c);
this.buffer.pixels[(y * this.width + x) * 4 + 3] = 255;
}
}
this.buffer.updatePixels();
}
}
function preload() {
console.log('Loading...');
portraitImage = loadImage("jp.png");
randomImage = loadImage("https://picsum.photos/400");
if (params.selfPortraitMode) {
currentImage = portraitImage;
} else {
currentImage = randomImage;
}
console.log("done");
}
function setup() {
let canvas = createCanvas(400, 400);
colorMode(HSB, 360, 100, 100, 100);
gui = createGuiPanel("params");
gui.addObject(params);
gui.setPosition(420, 0);
// Select on click
canvas.mousePressed(() => {
message = null;
let gridSize = ceil(sqrt(population.length));
let x = floor(mouseX / (width / gridSize));
let y = floor(mouseY / (height / gridSize));
let index = y * gridSize + x;
if (population[index]) {
population[index].selected = !population[index].selected;
}
});
// Display a single image on double click
// Or go back to the full display
canvas.doubleClicked(() => {
message = null;
if (displayOne === false) {
let gridSize = ceil(sqrt(population.length));
let x = floor(mouseX / (width / gridSize));
let y = floor(mouseY / (height / gridSize));
let index = y * gridSize + x;
if (population[index]) {
displayOne = index;
}
} else {
displayOne = false;
}
});
createElement('br');
// Generate a new population
createButton('randomize').mousePressed(() => {
message = null;
displayOne = false;
reset();
});
// Toggle select all
createButton('select all').mousePressed(() => {
message = null;
displayOne = false;
let allSelected = population.every(g => g.selected);
if (allSelected) {
for (let g of population) {
g.selected = false;
}
} else {
for (let g of population) {
g.selected = true;
}
}
});
// Mutate selected
createButton('mutate').mousePressed(() => {
message = null;
if (displayOne !== false) {
if (typeof displayOne !== 'number') {
message = "Cannot mutate from re-rendered";
return;
}
let g = population[displayOne];
g.mutate();
g.evaluate();
return;
}
let selectedGenes = population.filter(g => g.selected);
if (selectedGenes.length < 1) {
message = "Select at least one gene.";
return;
}
for (let g of population) {
if (g.selected) {
g.mutate();
g.evaluate();
}
}
});
// Keep selected and advance new
createButton('advance').mousePressed(() => {
message = null;
let selectedGenes = population.filter(g => g.selected);
if (displayOne !== false) {
if (typeof displayOne !== 'number') {
message = "Cannot advance from re-rendered";
return;
}
selectedGenes = [population[displayOne]];
displayOne = false;
}
if (selectedGenes.length < 1) {
message = "Select at least one gene.";
return;
}
for (let i = 0; i < population.length; i++) {
if (!population[i].selected) {
let parentA = random(selectedGenes);
let parentB = random(selectedGenes);
let newGene = parentA.crossover(parentB);
newGene.mutate();
newGene.evaluate();
population[i] = newGene;
}
}
});
// Debug information
createButton('debug').mousePressed(() => {
if (displayOne !== false) {
let one = null;
if (typeof displayOne === 'number') {
one = population[displayOne];
} else {
one = displayOne;
}
console.log(one.gene);
let opNames = one.gene.map(v => {
let opKeys = Object.keys(ops);
const opIndex = floor(v * opKeys.length);
return opKeys[opIndex];
});
console.log(opNames);
} else {
let minLength = Infinity;
let maxLength = -Infinity;
let totalLength = 0;
let avgLength = 0;
population.forEach((g, i) => {
console.log(`Gene ${i}: length=${g.gene.length}`);
if (g.gene.length < minLength) minLength = g.gene.length;
if (g.gene.length > maxLength) maxLength = g.gene.length;
totalLength += g.gene.length;
});
message = `Min: ${minLength}, Max: ${maxLength}, Avg: ${totalLength / population.length}`;
console.log(message);
}
});
// A button to render full scale
let fullScaleButton = createButton('re-render').mousePressed(() => {
message = null;
if (displayOne === false) {
message = "Switch to single view to re-render at full scale.";
return;
}
let upscaled = new Gene();
upscaled.gene = [...population[displayOne].gene];
upscaled.width = width;
upscaled.height = height;
upscaled.buffer = createGraphics(upscaled.width, upscaled.height);
upscaled.evaluate();
displayOne = upscaled;
});
createElement('br');
createSpan('Load your own image: ');
let fileInput = createFileInput((file) => {
if (file.type === 'image') {
randomImage = loadImage(file.data, () => {
message = "Image loaded successfully!";
if (params.mode === 'image') {
currentImage = randomImage;
for (let g of population) {
g.evaluate();
}
} else {
message = 'Switch mode to image';
}
});
} else {
message = "Please upload an image file.";
}
});
fileInput.elt.accept = 'image/*';
createElement('br');
createElement('br');
reset();
}
function reset() {
if (params.mode == 'self-portrait') {
currentImage = portraitImage;
} else if (params.mode == 'image') {
currentImage = randomImage;
} else {
currentImage = null;
}
population = [];
for (let i = 0; i < params.populationSize; i++) {
let gene = new Gene();
gene.evaluate();
population.push(gene);
}
message = null;
displayOne = false;
}
function draw() {
while (population.length > params.populationSize) {
population.shift();
}
while (population.length < params.populationSize) {
let gene = new Gene();
gene.evaluate();
population.push(gene);
}
if (previousScale !== params.scale) {
for (let g of population) {
g.width = width / params.scale;
g.height = height / params.scale;
g.buffer = createGraphics(g.width, g.height);
g.evaluate();
}
previousScale = params.scale;
}
if (previousMode !== params.mode) {
message = '';
if (params.mode == 'self-portrait') {
currentImage = portraitImage;
} else if (params.mode == 'image') {
currentImage = randomImage;
} else {
currentImage = null;
}
for (let g of population) {
g.evaluate();
}
previousMode = params.mode;
}
background(0);
if (displayOne !== false) {
if (typeof displayOne === 'number') {
let g = population[displayOne];
image(g.buffer, 0, 0, width, height);
} else {
image(displayOne.buffer, 0, 0, width, height);
}
} else {
let gridSize = ceil(sqrt(population.length));
for (let i = 0; i < population.length; i++) {
let g = population[i];
let x = (i % gridSize) * (width / gridSize);
let y = floor(i / gridSize) * (height / gridSize);
image(g.buffer, x, y, width / gridSize, height / gridSize);
if (g.selected) {
noFill();
stroke("black")
strokeWeight(4);
rect(x, y, width / gridSize, height / gridSize);
stroke("white");
strokeWeight(2);
rect(x, y, width / gridSize, height / gridSize);
// Check mark in the top right
noFill();
stroke("black")
strokeWeight(4);
let cx = x + width / gridSize - 20;
let cy = y + 20;
line(cx - 8, cy, cx - 2, cy + 6);
line(cx - 2, cy + 6, cx + 8, cy - 6);
stroke("white")
strokeWeight(2);
cx = x + width / gridSize - 20;
cy = y + 20;
line(cx - 8, cy, cx - 2, cy + 6);
line(cx - 2, cy + 6, cx + 8, cy - 6);
}
}
}
if (message) {
fill(0, 0, 100, 80);
rect(0, height - 30, width, 30);
fill(0);
noStroke();
textAlign(LEFT, CENTER);
textSize(16);
text(message, 10, height - 15);
}
}
