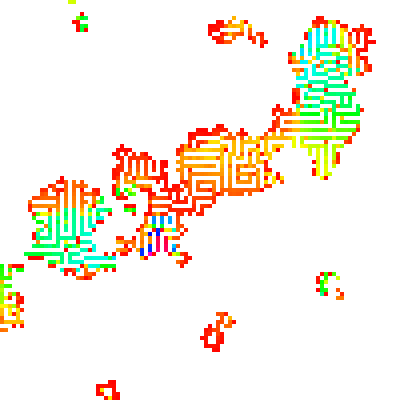

9) Cellular automata
Just a bunch of random rules, with the ability (if you put this in p5js at least) to add them pretty easily.
This one can do some wacky things if you randomize it. But also, it might crash your browser tab on some of these settings. Sorry. 😄
Try:
- Perlin, Max, fuzz, diffuse
let gui;
let params = {
cellSize: 4, cellSizeMin: 2, cellSizeMax: 20,
ageMultiplier: 1, ageMultiplierMin: 1, ageMultiplierMax: 360,
randomize: true,
randomizePercent: 0.01, randomizePercentMin: 0, randomizePercentMax: 1, randomizePercentStep: 0.01,
perlinSource: false,
perlinMask: true,
gameOfLife: false,
maze: true,
majority: false,
fuzz: false,
dieOff: true,
dieOffAge: 10, dieOffAgeMin: 1, dieOffAgeMax: 100,
flicker: false,
diffuse: false,
};
let rules = [];
let cells = {};
function setup() {
createCanvas(400, 400);
noStroke();
colorMode(HSB);
rules.push({
name: "randomize",
f: (x, y) => (random() < params.randomizePercent ? 1 : cells[[x, y]]),
});
rules.push({
name: "perlinSource",
f: (x, y) => {
let n = noise(x * 0.05, y * 0.05, frameCount * 0.01);
return n > 0.55 ? 1 : 0;
},
});
rules.push({
name: "perlinMask",
f: (x, y) => {
let n = noise(1e3 + x * 0.05, 1e3 + y * 0.05, frameCount * 0.01);
return n > 0.55 ? cells[[x, y]] : 0;
},
});
rules.push({
name: "gameOfLife",
f: (x, y) => {
let count = count_neighbors(x, y, 1, (v) => v > 0);
if (count < 2 || count > 3) {
return 0;
} else if (count == 3) {
return 1;
} else {
return 0;
}
},
});
rules.push({
name: "maze",
f: (x, y) => {
let c = count_neighbors(x, y, 1, (v) => v > 0);
if (cells[[x, y]]) return c >= 1 && c <= 5 ? 1 : 0;
return c == 3 ? 1 : 0;
},
});
rules.push({
name: "fuzz",
f: (x, y) => {
let c = count_neighbors(x, y, 1, (v) => v > 0);
if (c == 2) return 1;
if (cells[[x, y]]) return 1;
return 0;
},
});
rules.push({
name: "dieOff",
f: (x, y) => (cells[[x, y]] < params.dieOffAge ? cells[[x, y]] : 0),
});
rules.push({
name: "flicker",
f: (x, y) => {
let v = cells[[x, y]] || 0;
let c2 = count_neighbors(x, y, 2, (n) => n > 0);
if (v <= 0 && c2 >= 6 && c2 <= 9) return 1;
if (v > 0 && c2 > 12) return 0;
return v;
},
});
rules.push({
name: "diffuse",
f: (x, y) => {
let sum = 0;
let count = 0;
for (let xn = x - 2; xn <= x + 2; xn++) {
for (let yn = y - 2; yn <= y + 2; yn++) {
if (xn == x && yn == y) continue;
let v = cells[[xn, yn]];
if (v > 0) {
sum += v;
count++;
}
}
}
return count > 0 ? floor(sum / count) : 0;
},
});
gui = createGuiPanel("params");
gui.addObject(params);
gui.setPosition(420, 0);
}
function count_neighbors(x, y, offset, f) {
let count = 0;
for (let xn = x - offset; xn <= x + offset; xn++) {
for (let yn = y - offset; yn <= y + offset; yn++) {
if (x == xn && y == yn) continue;
if (f(cells[[xn, yn]])) {
count += 1;
}
}
}
return count;
}
function draw() {
let cells_x = width / params.cellSize;
let cells_y = height / params.cellSize;
let prev = { ...cells };
for (let { name, f } of rules) {
if (!params[name]) continue;
let next = {};
for (let x = 0; x < cells_x; x++) {
for (let y = 0; y < cells_y; y++) {
next[[x, y]] = f(x, y);
}
}
cells = next;
}
for (let x = 0; x < cells_x; x++) {
for (let y = 0; y < cells_y; y++) {
if (cells[[x, y]] && prev[[x, y]]) {
cells[[x, y]] = cells[[x, y]] + prev[[x, y]];
}
}
}
background("white");
noStroke();
fill("black");
for (let x = 0; x < cells_x; x++) {
for (let y = 0; y < cells_y; y++) {
let v = cells[[x, y]];
if (v > 0) {
fill((v * params.ageMultiplier) % 360, 100, 100);
rect(
x * params.cellSize,
y * params.cellSize,
params.cellSize,
params.cellSize
);
}
}
}
}
